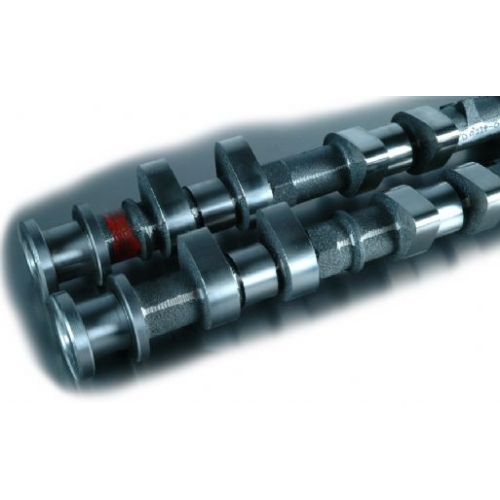

Cosworth 2.3 Duratec Camshaft
Reward Points: 0
Availability: In Stock
“Cosworth has been engineering camshafts for nearly 50 years. That coupled with years of innovative multi-valve cylinder head design ensures our camshaft designs are the most efficient in providing maximum usable power across the widest power band. Each cam is ground from a new chill cast billet and finished using the same procedures we use in our extreme level race engines and available in tested profile combinations covering a wide range of applications. Additionally, Cosworth camshafts are ground with the timing slot positioned for optimum cam timing thereby simplifying installation. Valve springs must be upgraded when exceeding 7200 rpm and 9.5mm lift. Always replace camshaft sprocket fasteners when changing camshafts along with the addition of our camshaft friction washer (YJ0092).
Note: Camshafts listed are not compatible with Mazda variable cam timing feature. Application power levels listed show the potential of the camshaft with suitable performance engine modifications.”
|
Part # |
Application |
Bar timing |
Lift |
Duration@ Ramp |
Duration@ 0.050" |
Max RPM |
|
YD0223 |
Inlet: 250hp 2.3 |
111 |
11.3mm /.450" |
282 |
242 |
7800 |
|
YD0224 |
Inlet: 240hp 2.3 |
101 |
11.3mm /.450" |
282 |
242 |
7800 |
|
YD0222 |
Inlet: 210hp 2.0 |
112 |
9.5mm / .380" |
256 |
216 |
7800 |
|
YD0222 |
Inlet: 200hp 2.0, 220hp 2.3 |
112 |
9.5mm / .380" |
256 |
216 |
7200 |
|
YD0173 |
Exhaust: 210hp 2.0, 240hp 2.3 |
113 |
9.5mm / .380" |
256 |
216 |
7800 |
|
YD0173 |
Exhaust: 200hp 2.0, 220hp 2.3 |
113 |
9.5mm / .380" |
256 |
216 |
7200 |
|
YD0182 |
Exhaust: 250hp 2.3 |
103 |
9.95mm / .400" |
262 |
222 |
8000 |
|
YD0718 |
Inlet: 250hp 2.0, 270hp 2.3 |
104 |
12.5mm / .500" |
303 |
258 |
8500 |
|
YD0719 |
Exhaust:250hp 2.0, 270hp 2.3 |
100 |
11.3mm /.450" |
290 |
244 |
8500 |
Note: Please Specify Part # and specifications when ordering camshafts
Fits: 06-09 Ford Fusion and Mercury Milan 4cyl
